Azure Network Segmentation Terraform

Introduction

Azure network segmentation Terraform is a key pattern used to define boundaries and control traffic in hub-and-spoke architectures.

In previous articles, we explored how to connect VNets, control routing, and enforce outbound traffic using forced tunneling.

At this point, the architecture may look complete:

VNets are connected
Traffic is routed through the hub
Outbound traffic is controlled

But there is still a critical question:

Where does control actually happen?

Connectivity and routing define paths.
But they do not define boundaries.

Azure Network Segmentation — Connectivity Is Not Isolation

In many Azure architectures, once VNets are connected and routing is configured, the system is considered “designed”.

However:

All traffic can still flow through the same logical paths
There is no separation between internal and external zones
Control is applied implicitly, not structurally

A connected system is not necessarily a controlled system.

To move from connectivity to architecture, we need to introduce segmentation.

Why Segmentation Matters

Segmentation defines trust boundaries within a network.

Instead of treating the network as a flat space, we explicitly separate:

Internal traffic
External traffic
Controlled entry and exit points

This allows us to:

Apply different security policies
Inspect traffic at specific boundaries
Reduce unintended communication paths

Without segmentation:

Routing may be correct — but control is still weak.

The Limitation of a Single NIC Design

A common approach when introducing a Virtual Appliance (NVA) is to deploy it with a single network interface.

At first glance, this seems sufficient:

Traffic flows through the appliance
Routing is enforced
Connectivity is maintained

But in practice, this creates a problem:

Internal and external traffic share the same interface
There is no clear separation of zones
Policy enforcement becomes ambiguous

A Virtual Appliance with a single NIC is just a router.

It forwards traffic — but does not define boundaries.

Introducing Dual NIC Segmentation

To introduce real control, we separate the appliance into two logical zones:

Inside interface — connected to internal (trusted) network
Outside interface — connected to external or transit network

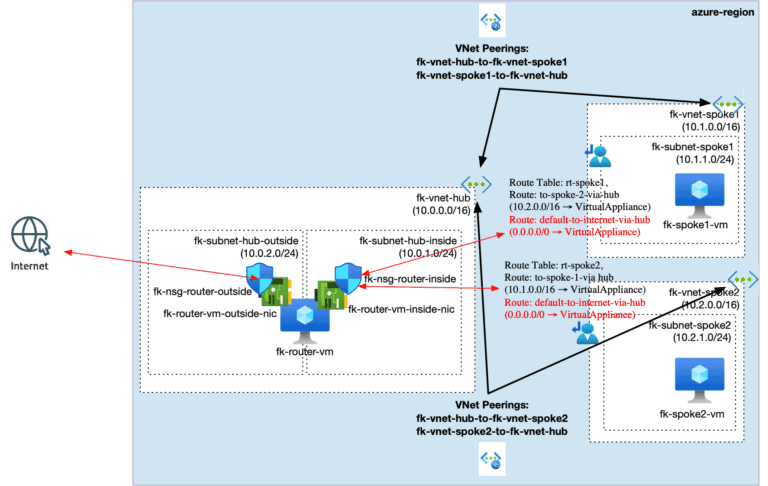

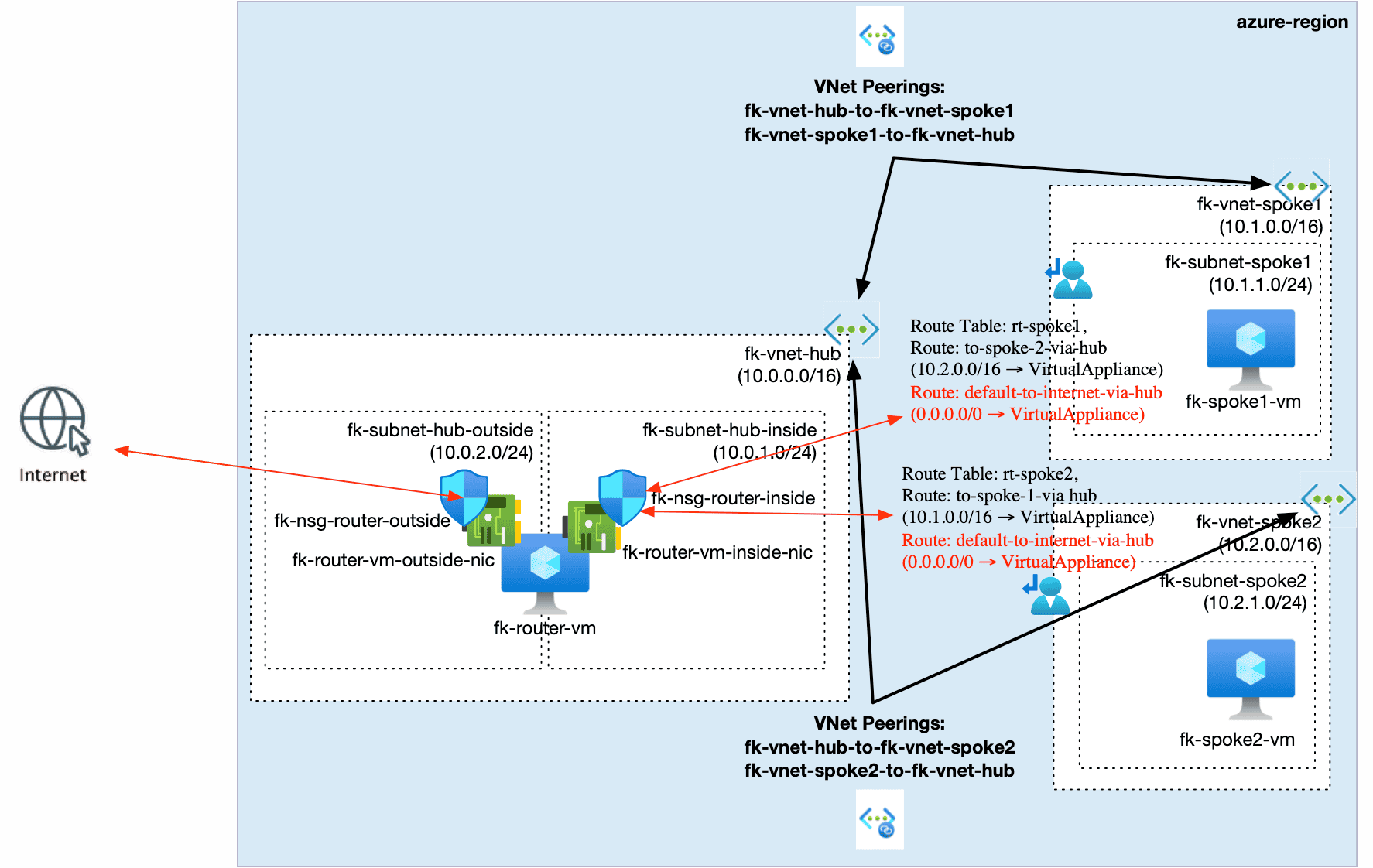

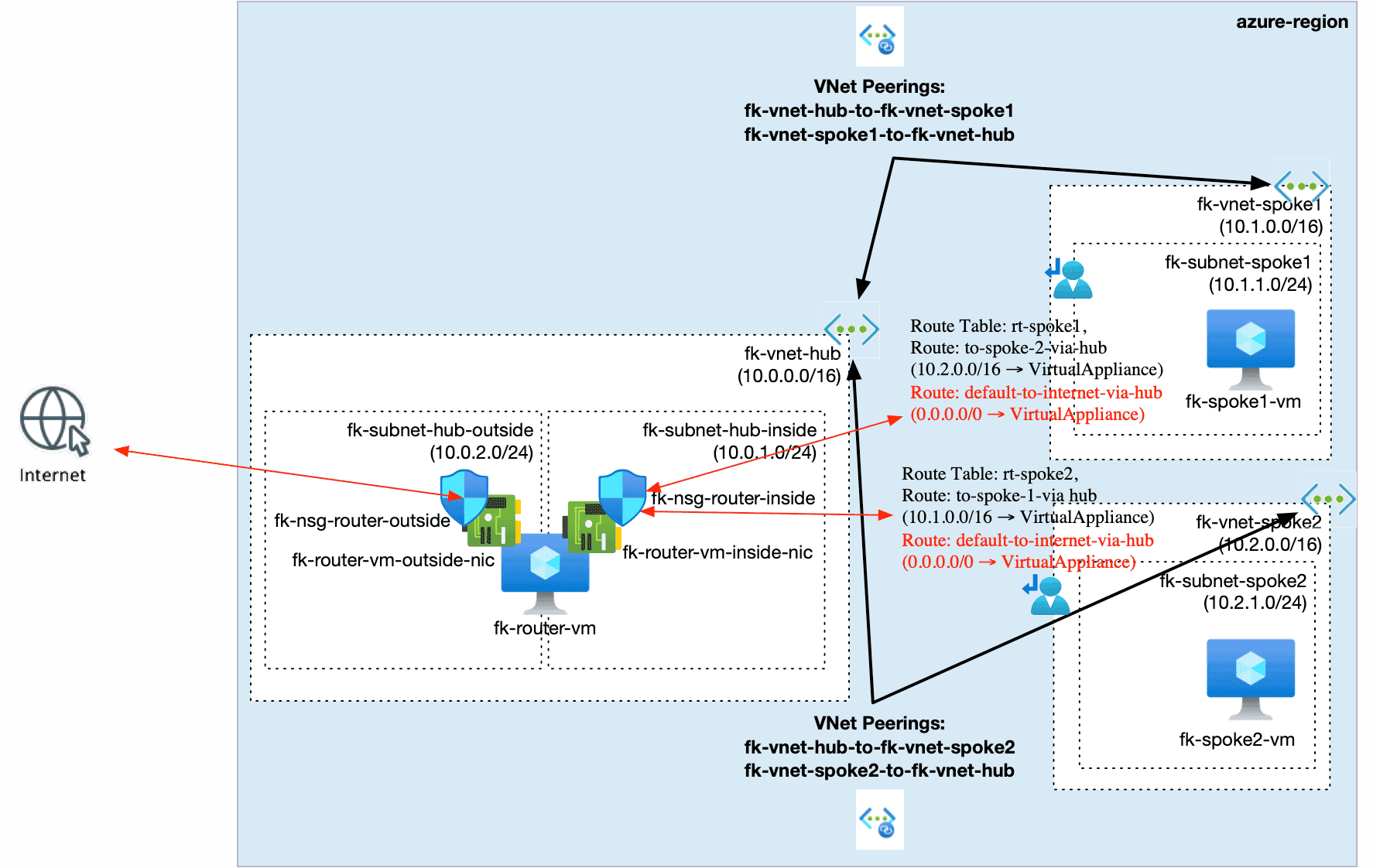

Figure 1. Azure NVA with Dual NIC segmentation (inside/outside model)

This design creates a clear boundary:

Traffic enters through one interface
Is processed by the appliance
Leaves through another interface

The system now has direction, structure, and control.

Inside vs Outside — A Structural Boundary

The dual NIC model introduces a simple but powerful concept:

Not all traffic is equal.

Instead of a flat network:

Internal systems communicate through the inside interface
External or outbound traffic is handled via the outside interface

This separation enables:

Explicit traffic inspection
Policy enforcement per direction
Clear routing intent

The network is no longer just connected — it is structured.

Traffic Flow in a Segmented Architecture

When combined with routing and forced tunneling:

Spoke traffic is routed to the hub
Default routes direct traffic to the appliance
The appliance processes traffic between inside and outside zones

The flow becomes:

Spoke VM → Hub (inside interface)
Inside → processing
Outside interface → Internet

The key difference is not connectivity — but the ability to control how traffic crosses boundaries.

Implementing Dual NIC NVA with Terraform

In Terraform, the design translates into:

A VM with two network interfaces
Each NIC placed in a different subnet
Separate NSG and routing logic applied per subnet

Example:

  network_interfaces = {
    outside = {
      subnet_id                     = module.vnet_hub.subnet_ids["fk-subnet-hub-outside"]
      private_ip_address_allocation = "Static"
      private_ip_address            = var.router_outside_private_ip
      enable_ip_forwarding          = true
      attach_nsg_to_nic             = true
      nsg_id                        = module.nsg_router_outside.id
      primary                       = true
    }
    inside = {
      subnet_id                     = module.vnet_hub.subnet_ids["fk-subnet-hub-inside"]
      private_ip_address_allocation = "Static"
      private_ip_address            = var.router_inside_private_ip
      enable_ip_forwarding          = true
      attach_nsg_to_nic             = true
      nsg_id                        = module.nsg_router_inside.id
      primary                       = false
    }
  }

Each interface represents a distinct role in the architecture.

👉 Full working example: https://github.com/foggykitchen/terraform-az-fk-routing/tree/main/examples/04_nva_dual_nic

Why This Pattern Matters

This design is widely used in real-world environments:

Enterprise hub-and-spoke architectures
Security-focused network segmentation
Controlled ingress and egress patterns

It enables:

Separation of trust zones
Centralized inspection
Predictable traffic behavior

This is where networking becomes architecture.

Trade-offs of Dual NIC Segmentation

Segmentation introduces clarity — but also complexity.

Key trade-offs include:

More complex network design
Additional configuration (NICs, subnets, NSGs)
Dependency on the appliance as a control point
Operational overhead

This pattern should not be applied blindly.

It should be used where boundaries and control are required — not just connectivity.

Key Takeaways

Connectivity and routing do not define boundaries
A single NIC appliance does not provide real segmentation
Dual NIC design introduces inside/outside separation
Segmentation enables control, inspection, and policy enforcement

A Virtual Appliance without segmentation is just a router.
With segmentation — it becomes a control boundary.
