Azure Hub Spoke Private Endpoint Terraform Design

Introduction

Azure hub spoke private endpoint Terraform setups are where simple designs start to break. In a previous article, I showed how to build hub-and-spoke routing in Azure using Terraform/OpenTofu modules. That setup introduced a key idea:

Hub-and-spoke is not about peering. It is about controlling traffic flow.

But that is only the foundation. In real architectures, workloads do not communicate only with each other. They also need access to platform services — such as Azure Storage. And this is where things stop being obvious.

What Changes When You Add Private Access?

In the base hub-and-spoke setup:

traffic flows between VNets
routing is centralized via the hub
control is achieved using UDR + Virtual Appliance

Once you introduce Private Endpoint, the problem changes.

You are no longer just routing between networks.

You are now dealing with:

PaaS services
DNS resolution
identity (attached to compute)
permissions (defined via RBAC)

At this point, the architecture is no longer just networking.

It becomes:

a system where multiple layers must align

And this alignment is where most real deployments break.

Architecture Overview

Compared to the base hub-and-spoke design, this setup introduces a key shift.

We are no longer just connecting networks. We are integrating services into the network through:

– Private Endpoint (Azure Blob Storage)
– Private DNS (privatelink.blob.core.windows.net)
– RBAC (access control)

The core remains unchanged:

– hub VNet with a Virtual Appliance
– spoke VNets
– VNet peering
– UDR-based routing

👉 The diagram below shows how these layers interact in practice.

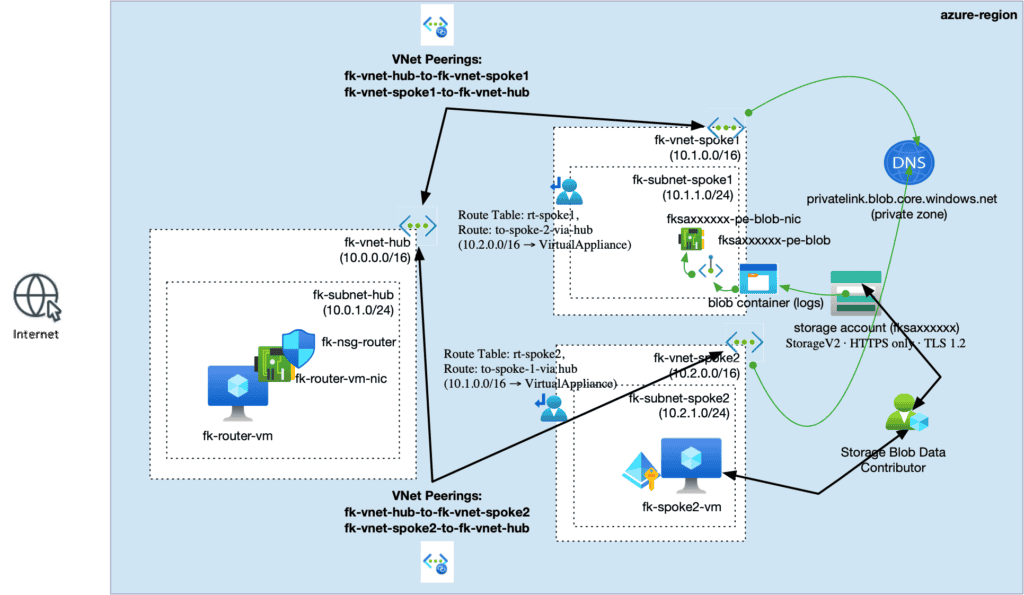

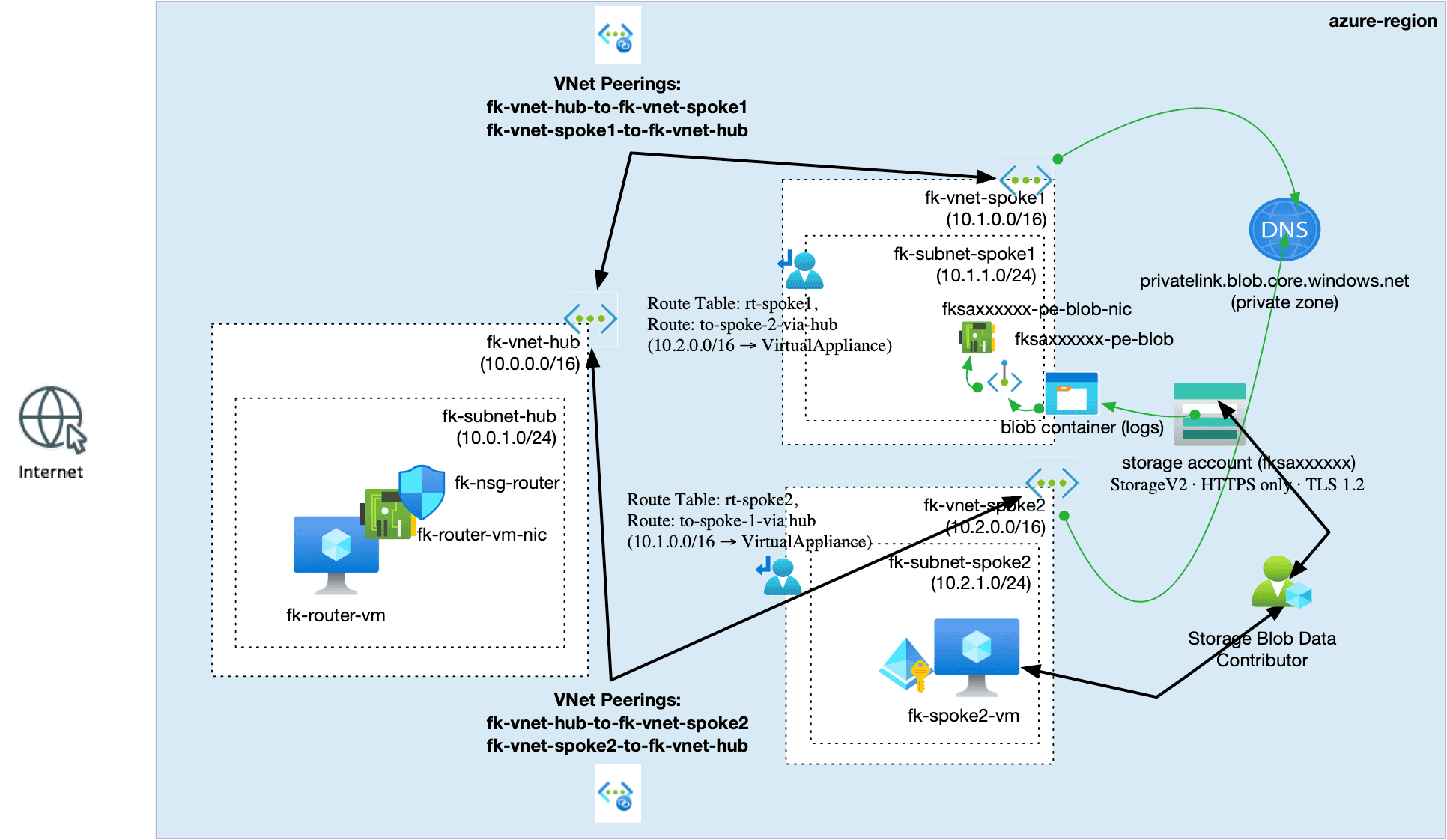

Figure 1. Hub-and-spoke routing extended with Private Endpoint, DNS, and RBAC

Terraform Modules: Architecture as Composition

This entire setup is built using Terraform/OpenTofu modules:

terraform-az-fk-vnet ← network boundary / address space definition
terraform-az-fk-vnet-peering← connectivity contract between VNets
terraform-az-fk-compute ← compute + managed identity
terraform-az-fk-routing ← routing control plane
terraform-az-fk-storage ← data boundary (Blob/File)
terraform-az-fk-private-endpoint ← private service exposure inside VNet
terraform-az-fk-private-dns ← name resolution control for private services
terraform-az-fk-nsg ← traffic filtering at subnet/NIC level
terraform-az-fk-rbac ← permissions layer

There are no raw azurerm_* resources.

Because the challenge is not resource creation.

It is:

making all layers behave as one system

A Minimal Composition Example

The point is not a single resource. The point is how compute, routing, storage, private connectivity, DNS, and permissions are composed together.

module "spoke1_vm" {
  source = "github.com/foggykitchen/terraform-az-fk-compute"

  vm_name       = "fk-spoke1-vm"
  subnet_id     = module.spoke1_vnet.private_subnet_id
  enable_system_assigned_identity = true
}

module "storage" {
  source = "github.com/foggykitchen/terraform-az-fk-storage"

  storage_account_name = var.storage_account_name
  blob_containers      = ["data"]
}

module "private_endpoint_blob" {
  source = "github.com/foggykitchen/terraform-az-fk-private-endpoint"

  subnet_id          = module.spoke2_vnet.private_subnet_id
  target_resource_id = module.storage.storage_account_id
  subresource_names  = ["blob"]
}

module "private_dns_blob" {
  source = "github.com/foggykitchen/terraform-az-fk-private-dns"

  private_dns_zone_name = "privatelink.blob.core.windows.net"
  vnet_ids = [
    module.hub_vnet.vnet_id,
    module.spoke1_vnet.vnet_id
  ]
}

module "spoke_routing" {
  source = "github.com/foggykitchen/terraform-az-fk-routing"

  routes = [{
    address_prefix         = var.spoke2_cidr
    next_hop_type          = "VirtualAppliance"
    next_hop_in_ip_address = var.hub_router_ip
  }]
}

module "storage_rbac" {
  source = "github.com/foggykitchen/terraform-az-fk-rbac"

  scope        = module.storage.storage_account_id
  principal_id = module.spoke1_vm.principal_id
  role_definition_name = "Storage Blob Data Contributor"
}

In this setup:

identity is attached to compute
routing is explicit
storage is private
DNS controls resolution
permissions are defined separately

Everything works only if these layers align.

The Illusion of “Simple Storage Access”

Accessing Azure Blob Storage looks trivial. Until you make it private. Now it depends on:

routing
DNS
identity
permissions
network placement

And none of these layers are independent. A small misalignment can result in:

timeouts
public endpoint fallback
access denied errors

This is where most architectures break.

Private Endpoint: Not Just a Feature

Private Endpoint creates a NIC inside your VNet. But that does not guarantee correct access. What matters is:

👉 how traffic reaches it
👉 how DNS resolves it

Without that, the endpoint exists… but the system does not work.

Private DNS: Where Things Quietly Break

Private DNS is often treated as a checkbox. In reality:

resolution can appear correct
while traffic still flows incorrectly

Or:

DNS falls back to public resolution

These issues are subtle. And difficult to debug without understanding the full system.

Routing: The Control Plane

Routing is defined via terraform-az-fk-routing. This is where architecture becomes real. You explicitly define:

traffic paths between spokes
how services are reached
what paths are allowed

But this is also where hidden issues appear:

asymmetric routing
unintended bypass
incorrect next hop assumptions

From the outside, everything looks correct. From inside the system, it is not.

Storage: A Boundary, Not a Resource

With terraform-az-fk-storage, storage becomes part of the architecture. Not just a service. But:

a controlled boundary inside the system

Once private:

it depends entirely on your network
it is no longer globally reachable

Which means: 👉 access is defined by your design

Identity and Permissions: Where Access Fails

In this architecture:

identity is attached to compute (terraform-az-fk-compute)
permissions are defined via RBAC (terraform-az-fk-rbac)

On paper, this is simple. In practice, this is where things fail:

identity exists but is not used
permissions are correct but ineffective
network works, but access is denied

Because: access is not a single layer it is the result of all layers working together

The Real Problem

Most architectures do not fail because resources are missing.

They fail because: 👉 network, DNS, identity, and permissions do not align

Each part works. The system does not.

Key Insight

Azure makes connectivity easy. But it does not guarantee correctness.

Correctness emerges from alignment

And alignment is not visible in diagrams.

From Network to System Design

Hub-and-spoke gives you control over traffic. But once you introduce:

Private Endpoint
DNS
identity
permissions

You are no longer designing a network. You are designing a system boundary.

Conclusion

Hub-and-spoke routing is the foundation. But real architectures require:

controlled routing
correct DNS
properly attached identity
correctly scoped permissions

Without alignment: 👉 the system behaves unpredictably

Even if everything is deployed correctly.
