Azure VNet Peering Terraform: Hub-and-Spoke Explained (No Transitive Routing)

In this guide, we explore how Azure VNet peering Terraform works in real-world hub-and-spoke architectures.

When engineers start building hub-and-spoke architectures in Azure, there is one assumption that almost always appears:

If both spokes are connected to the hub, they should be able to communicate with each other.

That assumption is wrong.

And understanding why it is wrong is one of the most important steps in moving from basic Azure networking to real architecture design.

🔗 From Multicloud Comparison to Azure-First Design

If you’ve been following FoggyKitchen, you might have seen my earlier post:

👉 Azure VNet Peering vs OCI Local Peering with Terraform

That article focused on a multicloud comparison, showing how similar concepts are implemented differently in Azure and OCI.

In OCI, connectivity is heavily driven by explicit routing rules and LPGs.
In Azure, connectivity is defined much more by topology and relationships between VNets.

In this post, we take a different approach.

Instead of comparing platforms, we focus purely on Azure networking design and answer a much more practical question:

What actually happens when you build hub-and-spoke with VNet peering?

🧱 Azure VNet Peering Terraform in Hub-and-Spoke Architecture

Let’s start with a simple but very common architecture pattern in Azure networking. In this setup:

A central hub VNet acts as a shared connectivity and control layer
Two spoke VNets represent isolated environments (for example, applications or workloads)
Each spoke is connected to the hub using VNet peering

At first glance, this looks like a fully connected topology. But in reality, Azure VNet peering behaves in a very specific way. Each peering connection is explicit and point-to-point. There is no implicit routing between VNets beyond what you define.

This means:

Spoke1 can communicate with the hub
Spoke2 can communicate with the hub
But Spoke1 cannot communicate with Spoke2 through the hub

This is a key architectural characteristic of Azure networking. The architecture shown on the right is exactly what is implemented in the example:

👉 https://github.com/foggykitchen/terraform-az-fk-vnet-peering/tree/main/examples/02_hub_spoke_peering

And built using the reusable module:

👉 https://github.com/foggykitchen/terraform-az-fk-vnet-peering

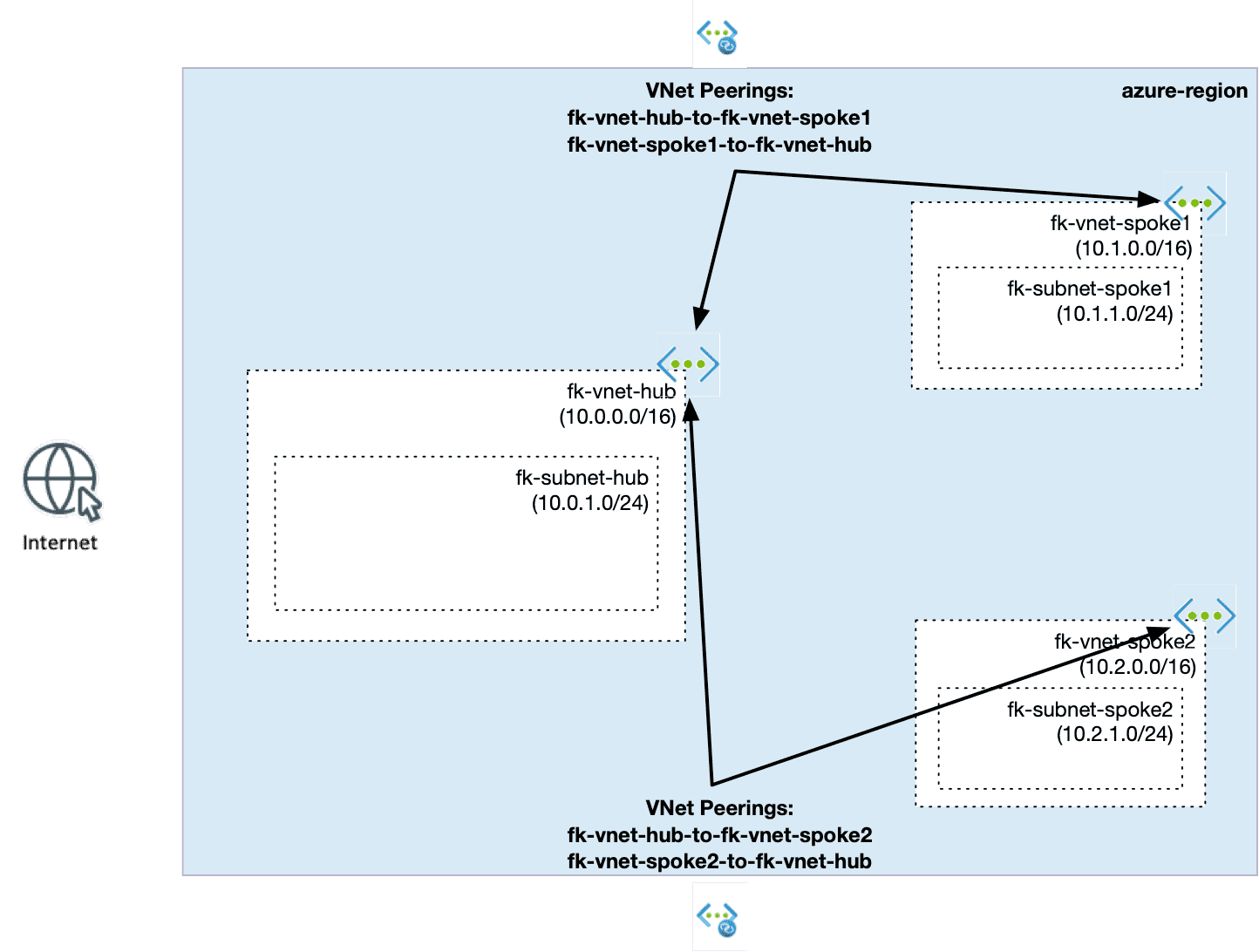

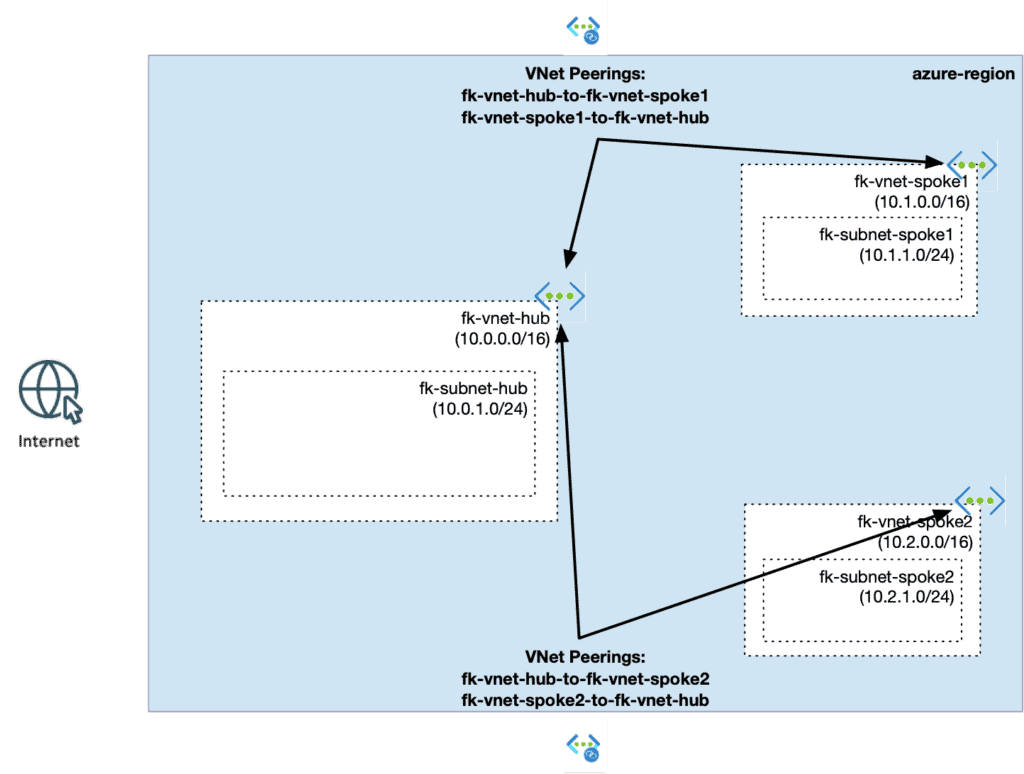

Figure 1. Azure hub-and-spoke architecture using VNet peering (non-transitive connectivity model)

⚙️ Terraform: Defining Connectivity as a Contract

In FoggyKitchen modules, networking is not just about resources.

It is about defining connectivity as an explicit contract between components.

Let’s look at how this hub-and-spoke architecture is expressed in Terraform/OpenTofu.

🧱 Step 1: Define isolated network boundaries

We start by creating three independent VNets using the terraform-az-fk-vnet module – one hub and two spokes. Each VNet defines its own address space and internal structure:

# HUB
module "vnet_hub" {
  source = "github.com/foggykitchen/terraform-az-fk-vnet"

  name                = "fk-vnet-hub"
  location            = azurerm_resource_group.fk_rg.location
  resource_group_name = azurerm_resource_group.fk_rg.name
  address_space       = ["10.0.0.0/16"]

  subnets = {
    fk-hub-subnet = {
      name             = "fk-hub-subnet"
      address_prefixes = ["10.0.1.0/24"]
    }
  }
}

# SPOKE 1
module "vnet_spoke1" {
  source = "github.com/foggykitchen/terraform-az-fk-vnet"

  name                = "fk-vnet-spoke1"
  location            = azurerm_resource_group.fk_rg.location
  resource_group_name = azurerm_resource_group.fk_rg.name
  address_space       = ["10.1.0.0/16"]

  subnets = {
    fk-subnet-spoke1 = {
      name             = "fk-subnet-spoke1"
      address_prefixes = ["10.1.1.0/24"]
    }
  }
}

# SPOKE 2
module "vnet_spoke2" {
  source = "github.com/foggykitchen/terraform-az-fk-vnet"

  name                = "fk-vnet-spoke2"
  location            = azurerm_resource_group.fk_rg.location
  resource_group_name = azurerm_resource_group.fk_rg.name
  address_space       = ["10.2.0.0/16"]

  subnets = {
    fk-subnet-spoke2 = {
      name             = "fk-subnet-spoke2"
      address_prefixes = ["10.2.1.0/24"]
    }
  }
}

At this point, all VNets are completely isolated.

There is no connectivity between them — and that is intentional.

🔗 Step 2: Define explicit connectivity contracts

Now we introduce connectivity using the terraform-az-fk-vnet-peering module:

# HUB <-> SPOKE 1
module "peering_hub_spoke1" {
  source = "github.com/foggykitchen/terraform-az-fk-vnet-peering"

  resource_group_name = azurerm_resource_group.fk_rg.name

  vnet_1_id   = module.vnet_hub.vnet_id
  vnet_1_name = module.vnet_hub.vnet_name
  vnet_2_id   = module.vnet_spoke1.vnet_id
  vnet_2_name = module.vnet_spoke1.vnet_name

  allow_forwarded_traffic = true
}

# HUB <-> SPOKE 2
module "peering_hub_spoke2" {
  source = "github.com/foggykitchen/terraform-az-fk-vnet-peering"

  resource_group_name = azurerm_resource_group.fk_rg.name

  vnet_1_id   = module.vnet_hub.vnet_id
  vnet_1_name = module.vnet_hub.vnet_name
  vnet_2_id   = module.vnet_spoke2.vnet_id
  vnet_2_name = module.vnet_spoke2.vnet_name

  allow_forwarded_traffic = true
}

🧠 What this really means

Each module call defines a point-to-point connectivity contract:

Hub ↔ Spoke1 → allowed
Hub ↔ Spoke2 → allowed
Spoke1 ↔ Spoke2 → not defined → not allowed

There is no implicit routing. No hidden behavior. No transitive connectivity.

🆚 Azure vs OCI (Mental Model Shift)

This is where your earlier multicloud comparison becomes important.

In OCI:

Routing rules define connectivity
LPG / DRG allow transitive traffic

In Azure:

Topology defines connectivity
Peering does NOT imply routing

👉 This leads to a key principle:

In OCI, routing defines connectivity.
In Azure, topology defines connectivity.

🚧 What You Need for Transitive Connectivity

If you actually want:

👉 Spoke1 → Spoke2

You must introduce a routing layer, for example:

Azure Firewall
Network Virtual Appliance (NVA)
Virtual WAN (advanced scenario)

And then:

add UDR (User Defined Routes)
forward traffic through the hub

👉 Without that:

hub-and-spoke is NOT transitive by design

🧩 Where This Fits in Azure Architecture

At this point, your mental model should look like this:

VNet = isolation boundary
Peering = connectivity contract
Routing (Firewall/UDR) = traffic control layer
Private Endpoint = service exposure
DNS = resolution layer

👉 And that is exactly how production Azure platforms are built.

🎓 Where to Go Next

If you want to continue this journey:

– go deeper into Azure hub-and-spoke networking
– understand why VNet peering is not transitive by default
– control traffic paths with User Defined Routes
– connect Private Endpoints across VNets with Private DNS
– centralize inspection with Azure Firewall

That is exactly what the Azure Advanced Networking with Terraform/OpenTofu course is built for.

👉 Azure Fundamentals gives you the baseline.
👉 Azure Advanced Networking takes you into real multi-VNet architecture.

☕ Chef’s Corner

VNet peering does not define architecture.
It defines relationships.

The architecture emerges only when you understand:

what connects
what does not
and why

Terraform doesn’t build architecture.

It makes the invisible layers visible.
