AKS Log Analytics Terraform is one of the cleanest ways to enable Azure Monitor and Container Insights for your Kubernetes clusters. In this article, I’ll show how the FoggyKitchen AKS module automatically creates a Log Analytics Workspace and connects it to your cluster without any manual steps.
Monitoring is one of the first capabilities you eventually need in any AKS deployment. Container logs, node metrics, pod inventory — all of this lives inside a Log Analytics Workspace. And without it, visibility into your Kubernetes environment is extremely limited.
In this short teaser (based on Lesson 5 of my upcoming AKS Terraform course), I’ll show how the FoggyKitchen AKS module enables Azure Monitor integration with minimal configuration, and how it automatically provisions the required azurerm_log_analytics_workspace resource.
AKS + ACR + Log Analytics Workspace
This example builds directly on the AKS + ACR setup from Lesson 4.
The only new component is a Log Analytics Workspace, connected to the AKS cluster through the OMS monitoring extension.

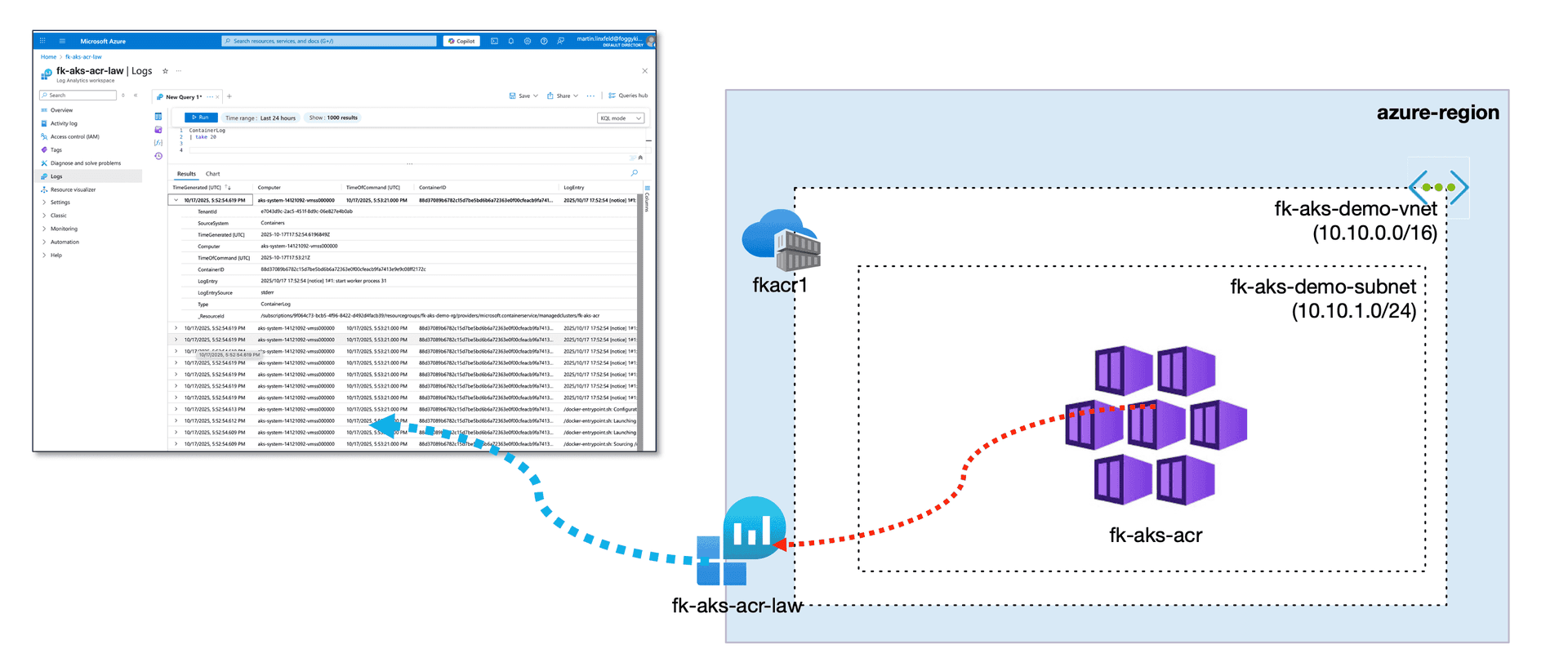

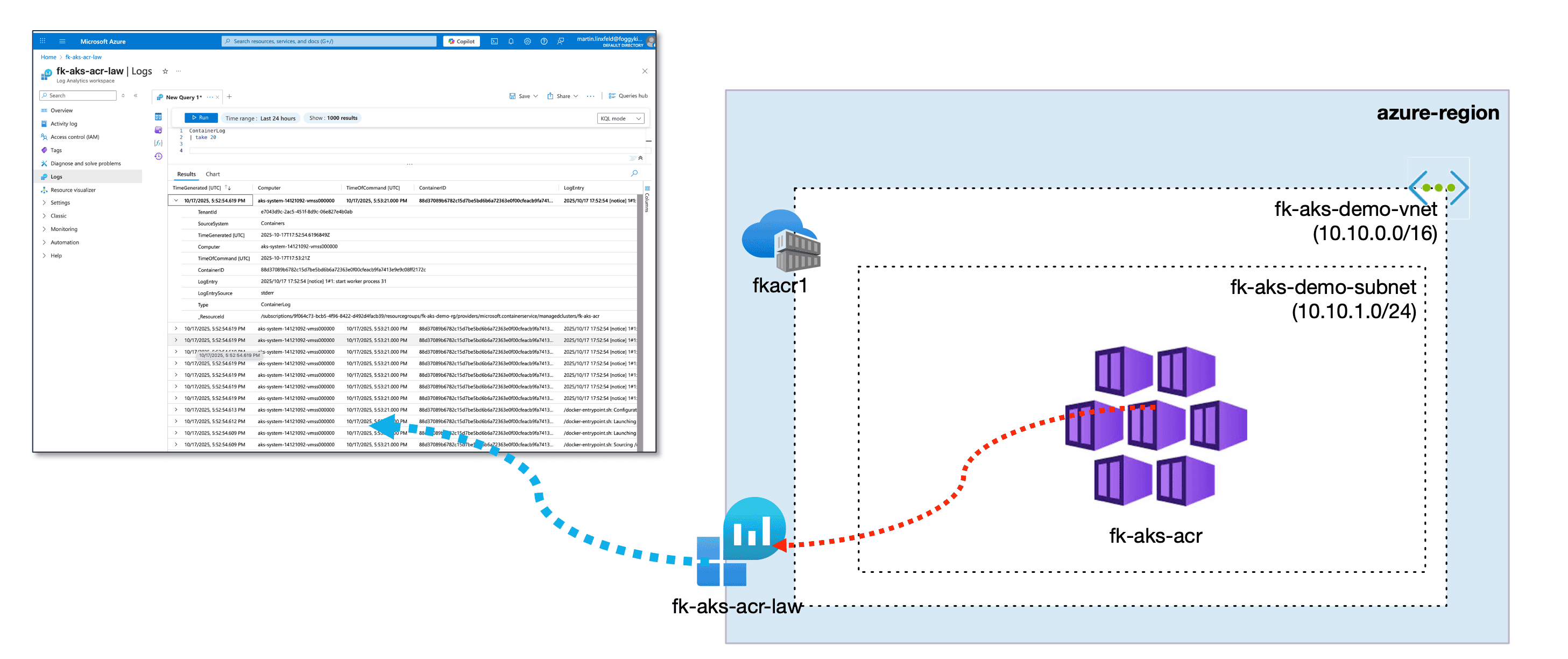

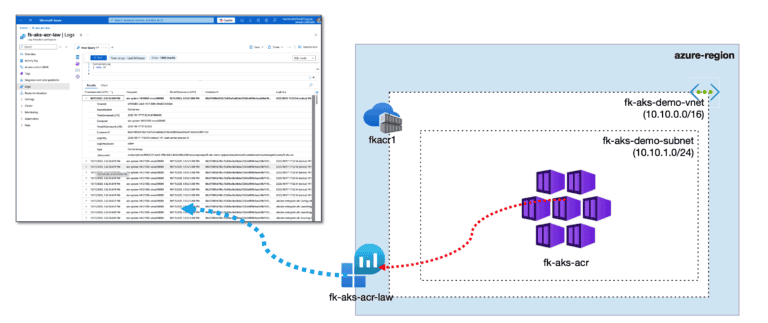

Figure 1. AKS + ACR + Log Analytics Workspace
Terraform configuration — simple module interface
Here is the exact module block used for this lesson:
module "aks" {
source = "github.com/foggykitchen/terraform-az-fk-aks"
name = "fk-aks-acr"
location = azurerm_resource_group.foggykitchen_rg.location
resource_group_name = azurerm_resource_group.foggykitchen_rg.name
create_networking = true
network_plugin = "kubenet"
enable_log_analytics = true
create_law = true
monitoring_mode = "oms"
}When these three monitoring parameters are enabled, the module:
creates a Log Analytics Workspace (
azurerm_log_analytics_workspace),retrieves its ID,
attaches the workspace to the AKS cluster automatically,
and enables Container Insights without any manual portal configuration.
Everything happens behind a clean and minimal interface.
Terraform plan — workspace creation
When running tofu plan, you’ll see that Terraform is preparing a new workspace:
# module.aks.azurerm_log_analytics_workspace.law[0] will be created
+ resource "azurerm_log_analytics_workspace" "law" {
+ allow_resource_only_permissions = true
+ daily_quota_gb = -1
+ id = (known after apply)
+ internet_ingestion_enabled = true
+ internet_query_enabled = true
+ local_authentication_disabled = false
+ location = "westeurope"
+ name = "fk-aks-acr-law"
+ primary_shared_key = (sensitive value)
+ resource_group_name = "fk-aks-demo-rg"
+ retention_in_days = 30
+ secondary_shared_key = (sensitive value)
+ sku = "PerGB2018"
+ tags = {
+ "project" = "foggykitchen-aks"
}
+ workspace_id = (known after apply)
}This confirms that monitoring is part of the cluster provisioning flow, not a separate manual step.
Azure Portal verification
After deployment, the monitoring setup is visible immediately.
AKS → Integrations
In the AKS blade, under Integrations, you should see:
Container Insights: Enabled
Workspace Resource ID pointing to the newly created workspace

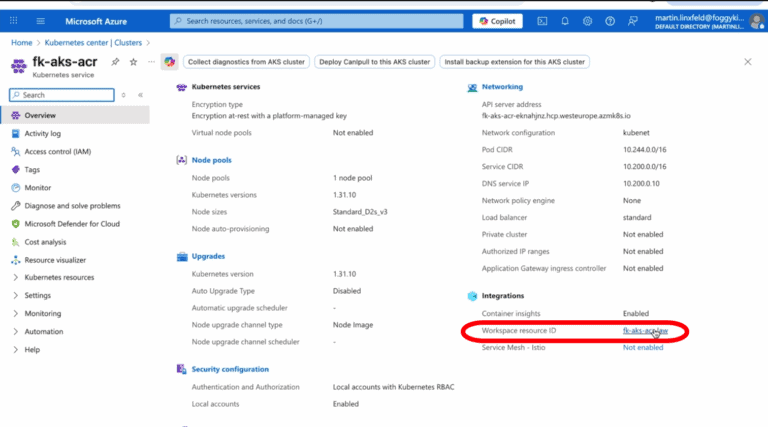

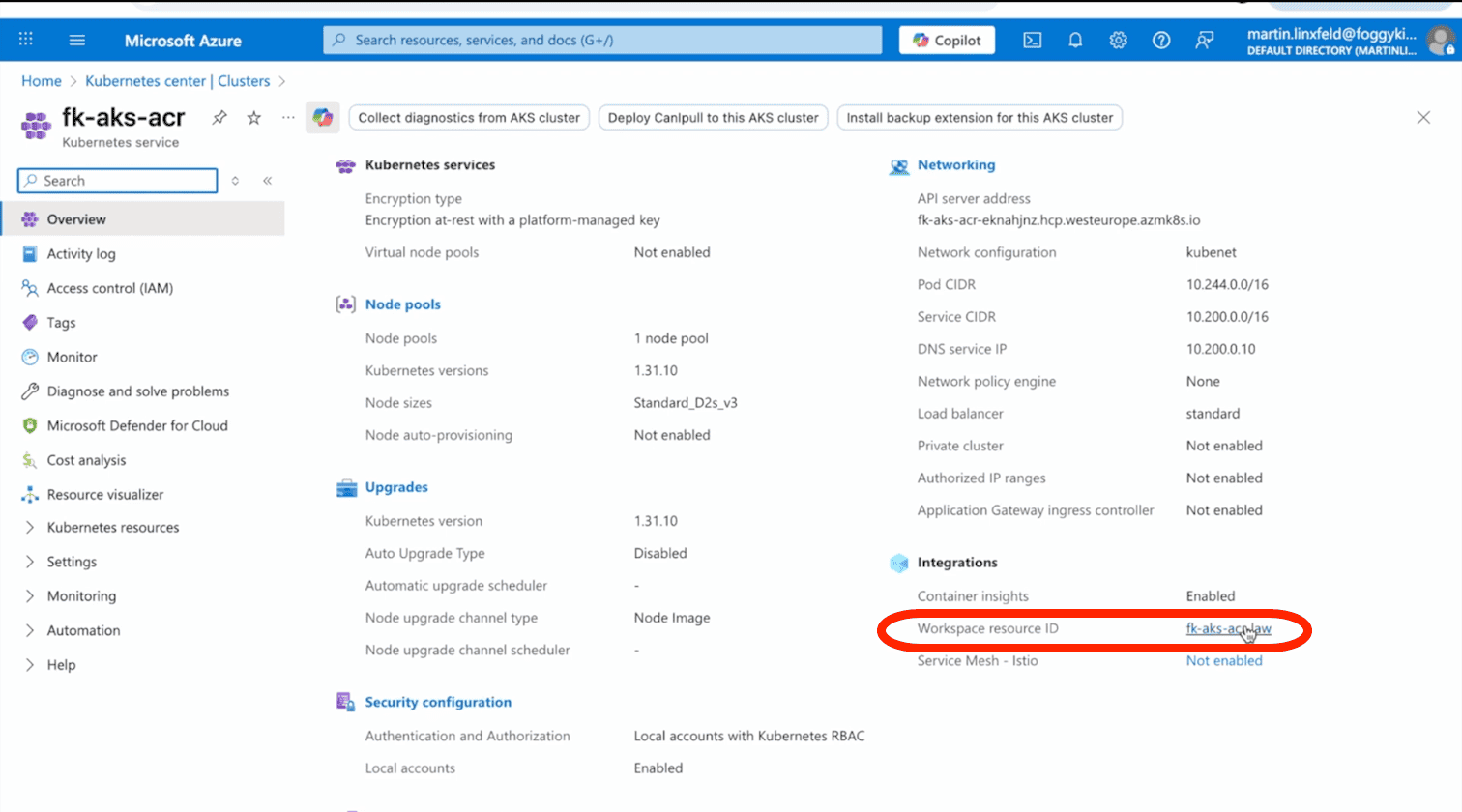

Figure 2. AKS Integrations in Azure Portal
Log Analytics → Logs
To confirm that AKS is sending telemetry to the workspace, open the Logs blade and run:
ContainerLog
| take 20If container logs appear, the OMS agent and Azure Monitor integration are fully operational.

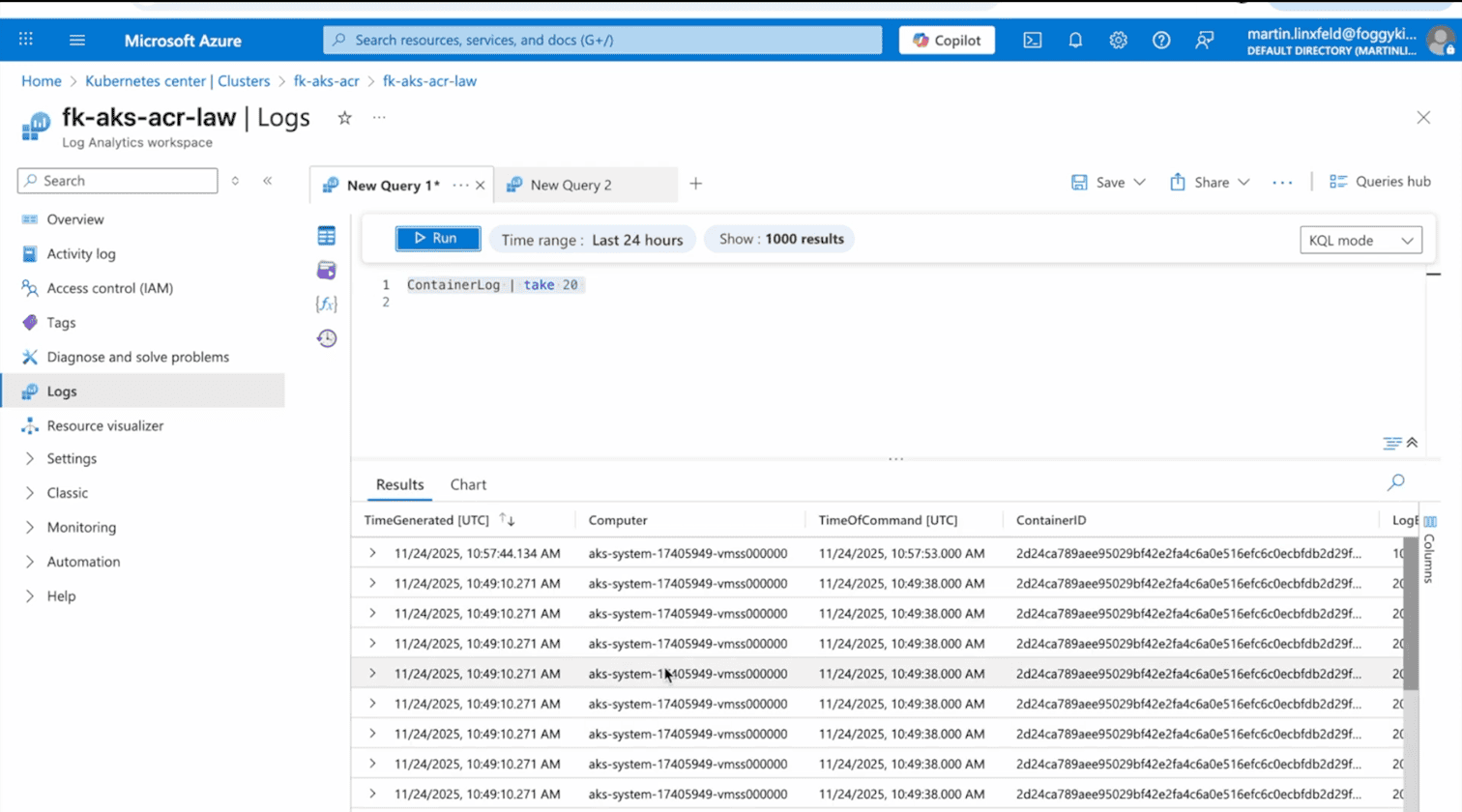

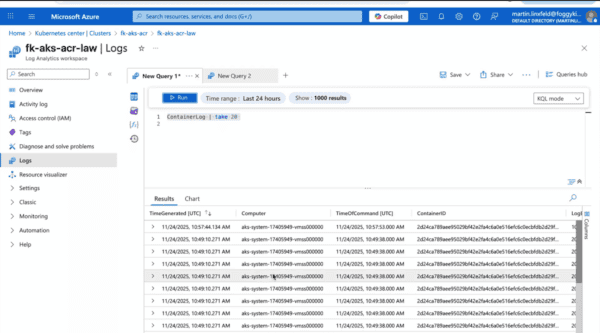

Figure 3. Log Analytics Workspace - KQL Query for Container Log output
AKS Log Analytics Terraform — Why This Matters
By embedding monitoring directly into the Terraform module, you ensure:
consistent setup across environments,
full automation with no click-ops,
reduced configuration drift,
and complete reproducibility for dev, stage and production clusters.
AKS monitoring becomes part of your cluster recipe — not an afterthought.
