Azure Firewall Terraform Tutorial — Architecture, UDR and Egress Control

Introduction

Azure Firewall Terraform is often introduced as a simple security component, but in real Azure architectures it plays a much deeper role. Most Azure environments eventually reach a point where everything appears to work.

Virtual networks are deployed. Subnets are separated. Network Security Groups are configured. Virtual machines can access the Internet.

At that stage, it is very easy to assume that the network is complete. In reality, this is where the real problem begins. Connectivity is already solved. What is still missing is control.

In this post, we introduce Azure Firewall as the first step towards controlled outbound traffic using Terraform/OpenTofu and a deliberately simple architecture.

What This Example Really Shows

This example demonstrates a complete outbound traffic flow inside a single Virtual Network:

a workload virtual machine placed in a dedicated subnet
a route table redirecting all outbound traffic
Azure Firewall acting as a centralized inspection point
basic firewall rules enabling DNS and web access

There are no spokes and no peering. This is not a production architecture. This is the smallest setup where Azure Firewall actually becomes part of the data path.

🏗️ Azure Firewall Terraform Architecture Overview

This diagram shows the simplest possible Azure Firewall deployment where traffic is not only allowed, but explicitly controlled.

A workload virtual machine is deployed in a dedicated subnet and does not have direct Internet access.

Instead, a route table forces all outbound traffic (0.0.0.0/0) to the private IP address of Azure Firewall using the VirtualAppliance next hop.

As a result:

all outbound traffic from the workload must pass through Azure Firewall
the firewall becomes the single egress point
traffic is inspected before leaving the Virtual Network
the public IP observed externally is the firewall public IP, not the VM

This design introduces a critical architectural shift:

👉 outbound connectivity is no longer implicit — it is enforced and controllable

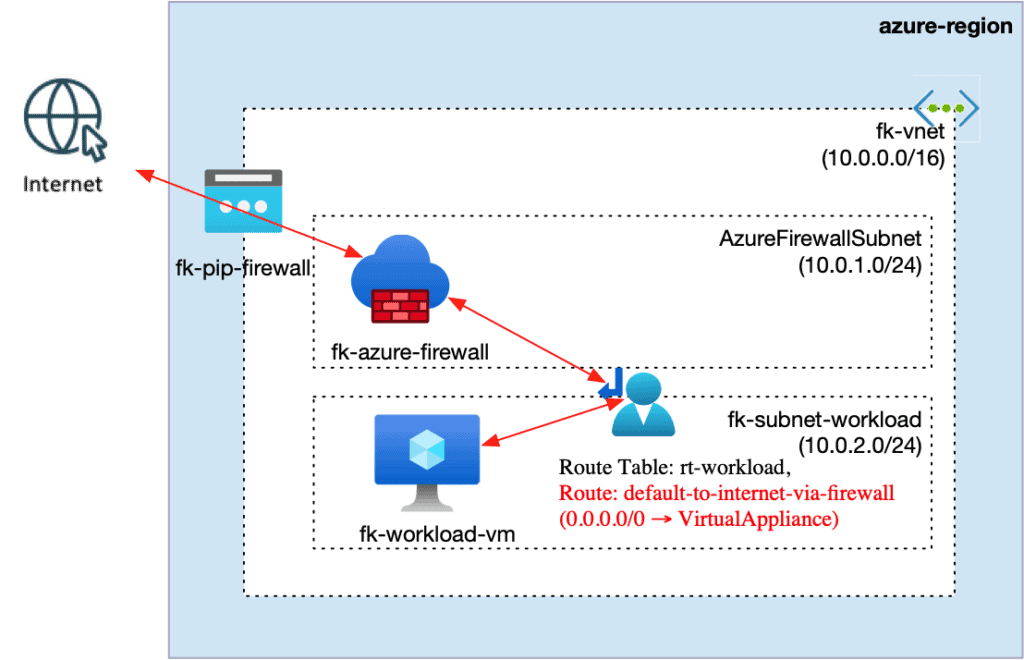

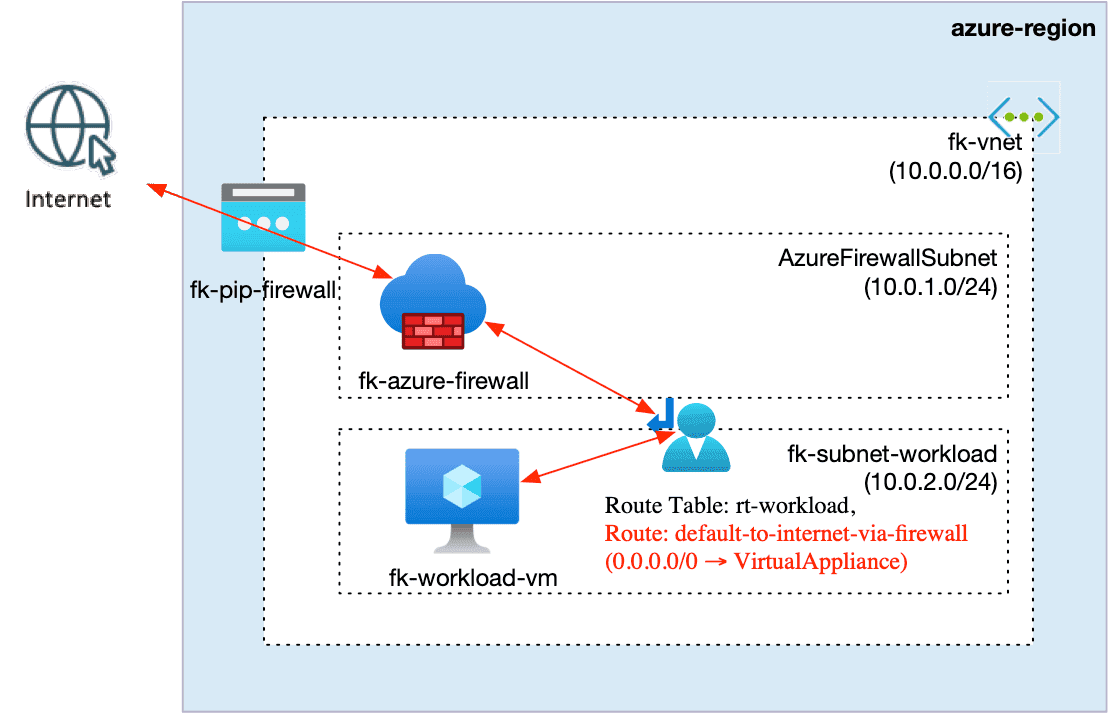

Figure 1. Enforcing outbound traffic through Azure Firewall using UDR

🧩 Module Composition

This example is composed using FoggyKitchen Terraform/OpenTofu modules.

Each module represents a separate concern in the architecture.

Modules Used

terraform-az-fk-vnet
Defines the Virtual Network and both subnets
terraform-az-fk-public-ip
Creates the public IP for Azure Firewall
terraform-az-fk-firewall
Deploys Azure Firewall and rule collections
terraform-az-fk-compute
Provisions the workload VM
terraform-az-fk-routing
Defines routing and associates the route table

How Modules Create Architecture

The modules themselves are independent.

The architecture emerges from how they are connected.

At a high level:

the firewall module provides a private IP
the routing module uses that IP as the next hop
the workload subnet is associated with that route

This creates a deterministic flow:

workload → routing → firewall → internet

Example: Firewall Module (Structure)

module "firewall" {
  source = "git::https://github.com/foggykitchen/terraform-az-fk-firewall.git"

  name                = "fk-azure-firewall"
  firewall_subnet_id  = module.vnet.firewall_subnet_id
  public_ip_id        = module.public_ip.id

  # rule collections omitted
}

Example: Routing Integration (Concept Only)

module "routing" {
  source = "git::https://github.com/foggykitchen/terraform-az-fk-routing.git"

   route_tables = {
    rt-workload = {

      routes = [
        {
          name           = "default-to-internet-via-firewall"
          address_prefix = "0.0.0.0/0"
          next_hop_type  = "VirtualAppliance"
          next_hop_ip    = module.firewall.firewall_private_ip
        }
      ]

    }
  }
}

👉 Notice that the routing module depends on the firewall output, but the full wiring is intentionally abstracted.

🔐 Rule Design

The firewall configuration is intentionally simple.

It allows:

outbound DNS traffic
outbound HTTP and HTTPS traffic

Example structure:

network_rule_collections = [
    {
      name     = "allow-dns"
      priority = 100
      action   = "Allow"
      rules = [
        {
          name                  = "allow-dns-outbound"
          protocols             = ["UDP", "TCP"]
          source_addresses      = ["10.0.0.0/16"]
          destination_addresses = ["8.8.8.8", "1.1.1.1"]
          destination_ports     = ["53"]
        }
      ]
    }
  ]

This is enough to:

validate the architecture
confirm traffic inspection
demonstrate control

⚠️ Important

The snippets above illustrate the structure of the configuration. They are not a complete deployment.

The full working setup, including module wiring, routing dependencies and validation flow, is covered step by step in the course.

What This Example Validates

After deployment, you should be able to confirm that:

the workload subnet routes traffic to Azure Firewall
outbound connectivity works
the observed public IP matches the firewall public IP

This proves that traffic is no longer leaving the network directly.

🔥 What This Example Does NOT Solve

This example introduces a control point, but it does not yet represent a real architecture.

It does not cover:

These are the areas where Azure Firewall becomes a real architectural component.

🧠 From Basic Firewall to Real Architecture

In real environments, this pattern evolves into:

hub-and-spoke design
centralized firewall in a hub VNet
multiple spoke VNets
enforced traffic inspection across environments

At that point, the firewall becomes the core of network control.

Conclusion

This example introduces a critical shift. It moves from connectivity to control.

Azure Firewall is not just deployed. It is placed into the traffic path and becomes enforceable.
